BX-PSG010 Series Blood Pressure Monitor Pressure Sensor

BX-PSG010 Series Blood Pressure Monitor Pressure Sensor

一，Feature：

1，Solid State,MEMS Technology,High Reliability

2，Low Cost and Easy to Use

3，Standard Gauge Pressure Range:0-5.8psi(0-40kPa)

二，Technical Parameters：

Excitation voltage：5V

Excitation current：0.3mA

Overload capacity：2 times

Breakdown pressure：4 times

Working temperature：-20 to 80C

Storage temperature：-55 to 150C

三，Shape Optional：

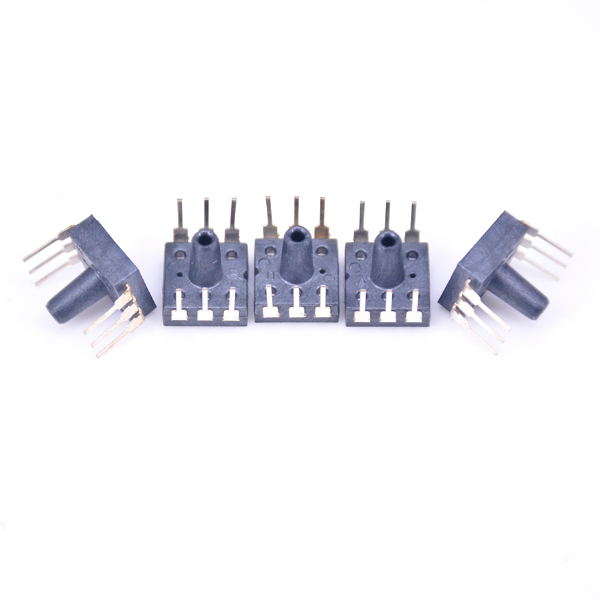

BX-PSG010

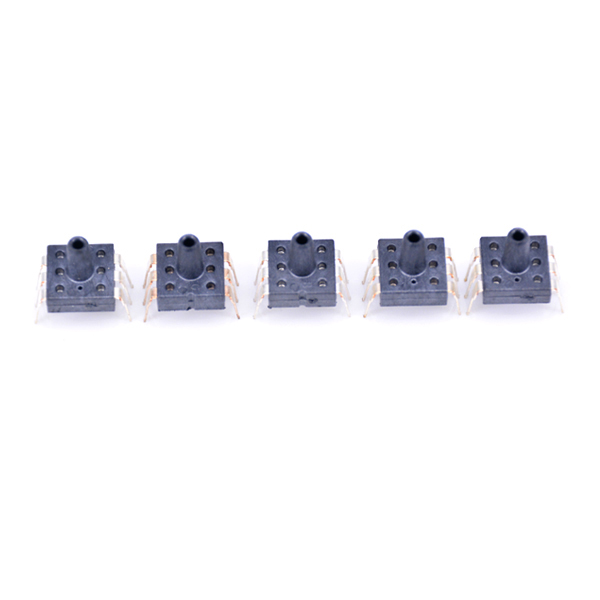

BX-PSG010R

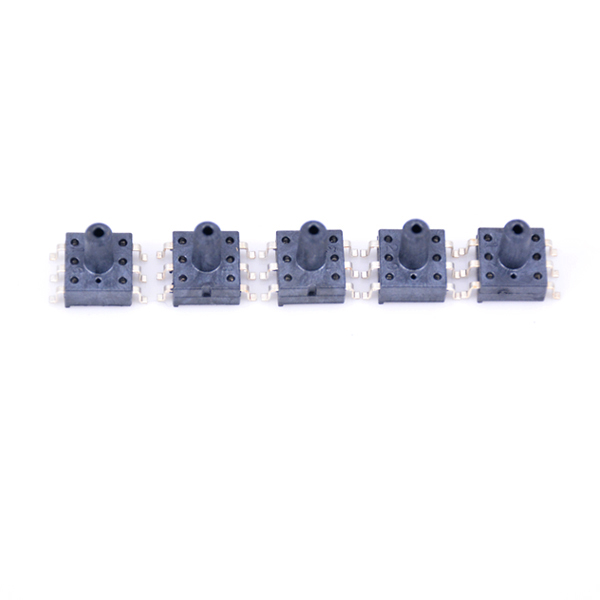

BX-PSG010S
