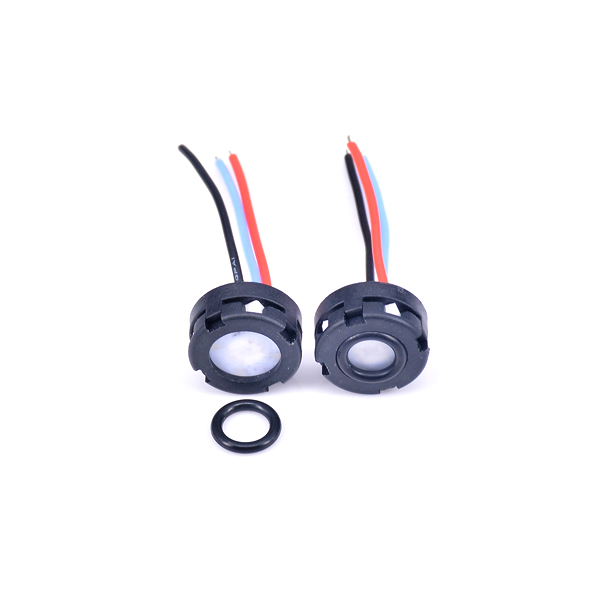

BX-PSM10V Pressure Sensor Module

BX-PSM10V Pressure Sensor Module

一，Features：

1, 0.5-4.5V standard signal output

2, small size and fixed structure

3, nice stability

4, overload capacity: 3-5 times

5, Width Using Temperature:-40 to 125C

6, output signal is optional

7, suitable for many measurement medium

二，Technical Parameters：

Pressure Range：0-3Mpa

Overload Capacity：2 times

Output Signal：0.5-4.5V/0-5V/0.5-2.5V/1-5V/0-3.3V etc

Power Supply：5VDC

Accuracy：+/-2%,+/-1%,+/-0.5%

Measurement Medium：the air or liquid which is compatible with 316L

Resolution Ratio：infinitely small(theoretical value),1/100000(common)

Working Temperature：-40 to 125C
