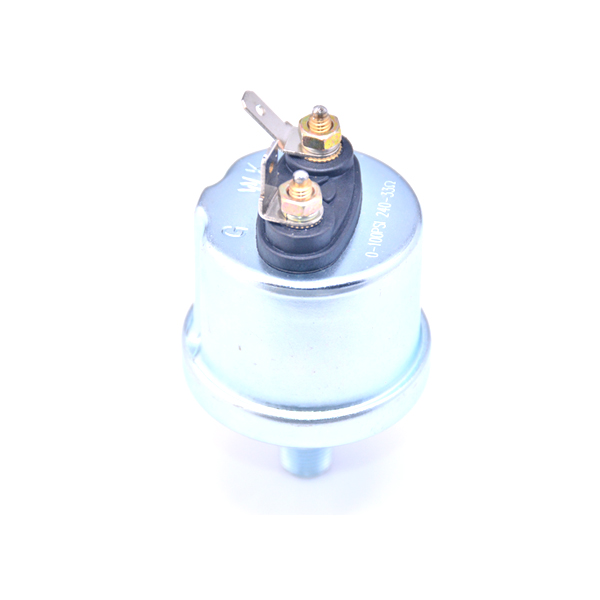

BX-OPS100 Oil Pressure Sender

BX-OPS100 Oil Pressure Sender

Technical Parameters:

Input: 0-100 psi.

Output: 240-33 ohms resistance. Isolated to ground.

Accuracy: within 5% full scale.

Thread: 1/8”-27 NPT.

Wiring connectors: 8-32 stud, wind the cable onto the screw,and then screw it up through nut.

Symbols: G for signal, should use wide connection, "WK" for ground, should use narrow connection.
