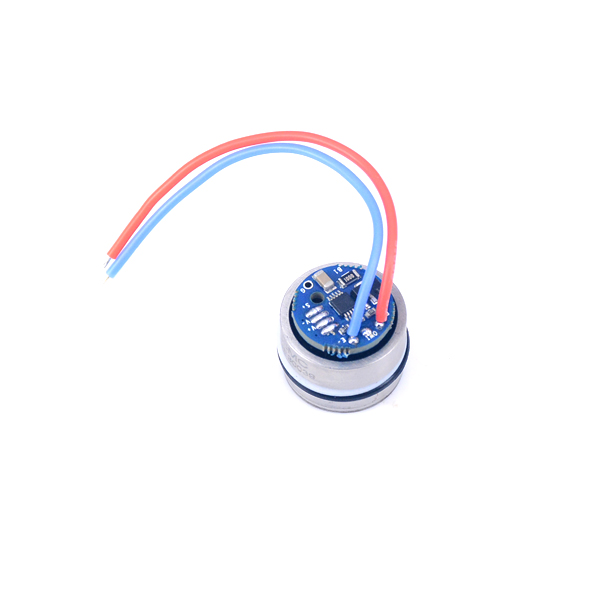

BX-PSM19 Diffused Silicon Pressure Sensor Module

BX-PSM19 Diffused Silicon Pressure Sensor Module

一，Features:

High reliability imported diffused silicon pressure chip,all 316l stainless steel material,Ø19 standard OEM package,wide temperature compensation,the signal uses imported high precision, high bandwidth, low delay, low power conditioning chip.

二，Technical Parameters:

Pressure range:30kPa-70Mpa

Power supply:9-32VDC etc

Signal output:0.5-4.5V,4-20mA etc

Working temperature:-20 to 120C

Long-term stability:±0.3%F.S./year

Overload Capacity:200%FS

Sensor Core:diffused silicon
