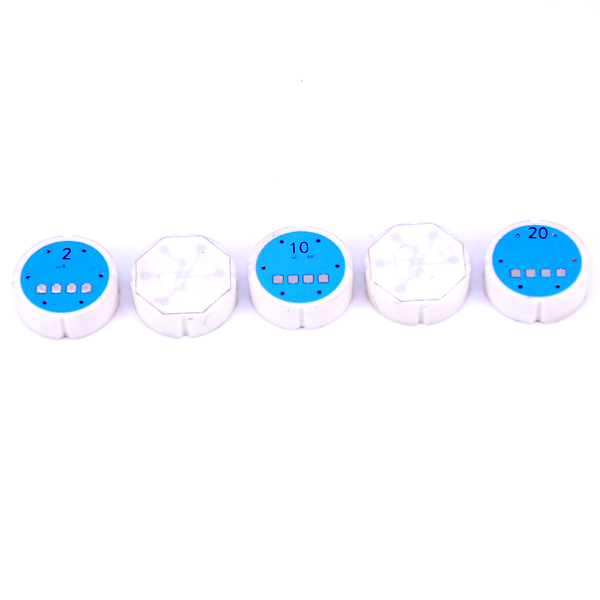

BX-PSC18FC Flush Diaphragm Piezoresistive Ceramic Pressure Sensor
Application:
1, pressure instrument,pneumatic and hydraulic equipment,process control;
2, digital instrument,Medical instrument,digital switch,electronic consumer goods;
3, chemical products and the chemical industry,household electrical appliances.
Technical Parameters:
Pressure Range | 2/10/20bar |
Pressure Type | Relative |
Supply Power | 5-30VDC |
Signal Output at Full Range | 2mV-4mV/V |
Bridge Resistance | 11 KΩ ± 30% |
Zero Drift | ≤± 0.2mv/V |
Insulation Resistance | >2KV |
Long-term Stability on Zero Point | ± 0.2%FS |
Direct Contact Material with Liquid | Alumina Al203-96% |
Working Temperature Range | -40 to +135℃ |
Storage Temperature Range | -55 to +150℃ |
Temperature Drift | ≤± 0.03%FS/℃ |
Relative Humidity | 0-100% |
Electrical Connection | no soldered pads,welding pins or cables |
