Product Description

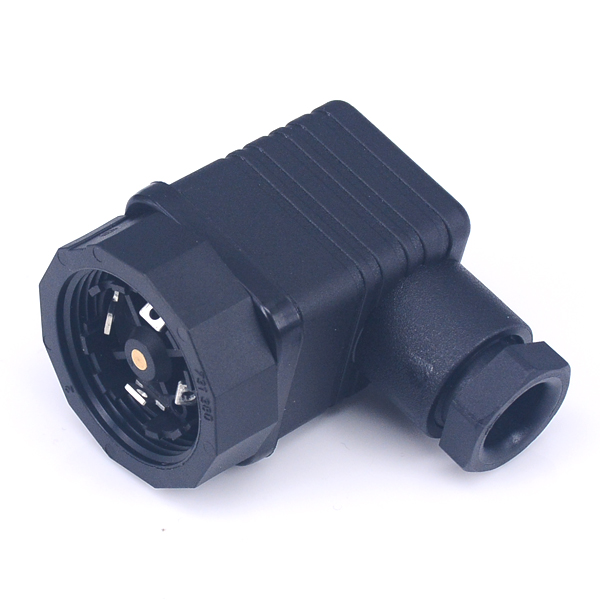

Cable socket with central screw M 3x35

Type

GDM 3009 schwarz/black

Number of contacts

3+PE

Cable gland

PG 9

Conductor size

Max.1.5mm²

Standard

DIN EN 175 301-803-A

Housing color

black

Construction type

A

Pin dimensions

6.3mmx0.8mm,4.8mmx0.8mm

Rated voltage

UC 250V

Rated current

16A

Contact resistance

Less than 4 mohm

type of termination

screw

Suitable cables

4.5mm to 7mm diameter

Mounting

Central nut

Contact surface material

Sn

Contact bearer material

PA

Housing material

PA

Protection class (IEC 60529)

IP 65(gasket neccessary)

Pollution severity

3

Temperature range

-40 to +125℃

Housing inflammability class

94 HB

Contact bearer inflammability class

94 HB
