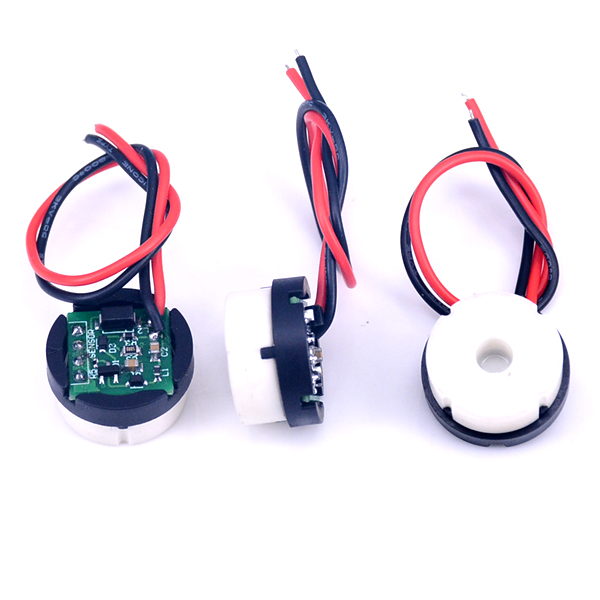

BX-PSM18A Pressure Sensor Module

一，Features：

l, High accuracy and high stability

2, Wide choice of measuring ranges

3, Solid ceramic sensitive diaphragm

4, Smart volume, easy for encapsulation

5, Excellent shock and vibration resistance

6, Excellent corrosion and abrasion resistance

7, Low cost, extreme extensive application range

8, Thermally compensated, wide-range operating temperature

二，Technical Parameters：

Power supply：12-36V

Output：4-20mA

Pressure range：0-50bar

Pressure type：gauge pressure

Working temperature：-40 to 85C

Technology：Piezoresistive

Material：Al2O3 96%
