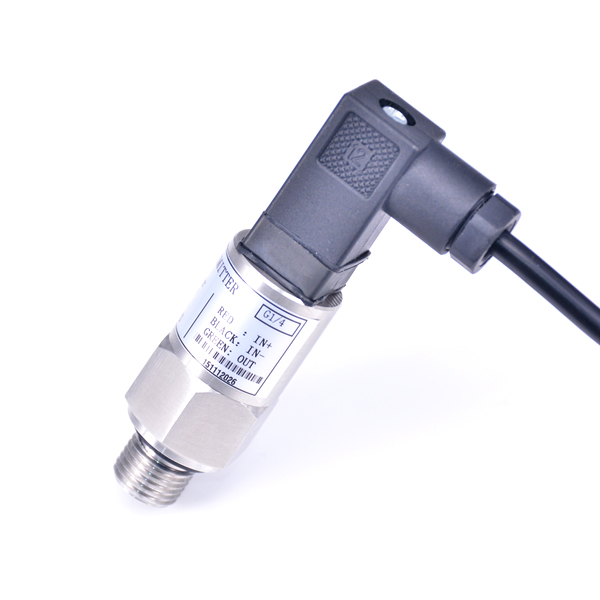

BX-PTC307 Series Air Compressor Pressure Transmitter

一，Feature：

1, This air compressor pressure sensor is designed by Benxu for air compressor with big quantities,low cost

and cost-effective.

2, This air compressor Pressure Sensor have good medium compatibility,it's suitable for oil,sewage,steam

and other medium condition,it get excellent anti-jamming and anti-impact capability,and what's  more,

we can apply for Pneumatic and hydraulic pressure system,refrigeration device.

3, The crust is made of stainless steel, you can choose NPT 1/4,G1/4,M20*1.5 etc,standard screw port so that

we can guarantee our products durable and sealed.

二，Technical Parameters：

Accuracy：0.5%FS;1%FS

Pressure Range：-0.1MPa~60MPa etc

Signal Output：4-20MA;0.5V-4.5V

Temperature Drift ：±0.02%FS/℃

Working Temperature：-40~85℃

Overload Capacity：2 times

Cable Connection：Packard etc

Pressure Connection：G1/4;NPT1/4 etc
