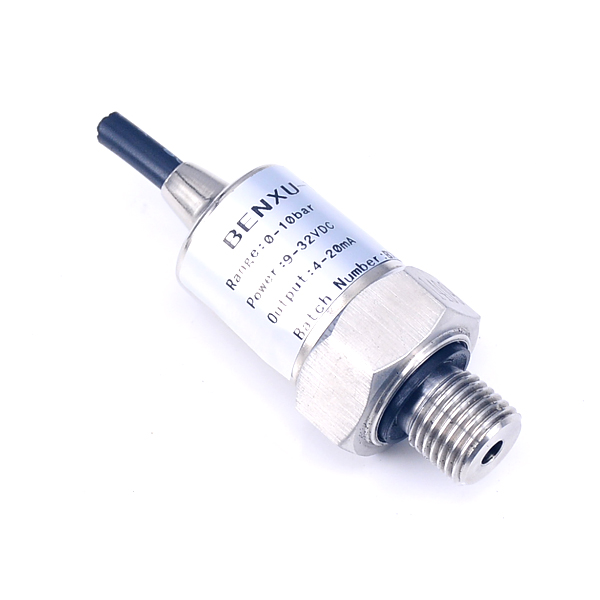

BX-PTP604 Series Printing and Dyeing Pressure Transmitter

一，Feature：

1, High accuracy and stable signal output;

2, Whole stainelss steel case;

3, Very nice performance of pressure resistance;

4, Small size,easy to install;

5, Working temperature: -40 to 85℃;

6, Many kinds of pressure thread and signal output.

二，Technical Parameters：

Measurement Medium：the air or liquid which is compatible with 316L

Pressure Range：-100kPa to 60bar

Pressure Type：gauge pressure

Overload Capacity：1.5 times

Rupture Pressure：2 times

Power Supply：9-32VDC;12VDC;5VDC

Signal Output：4-20mA;1-5V;0-5V;0.5-4.5V

Accuracy：0.5%FS

Working Temperature：-40 to 85C

Compensation Temperature：0-70C

Pressure Connection：G1/4;NPT1/4;M20x1.5 etc
