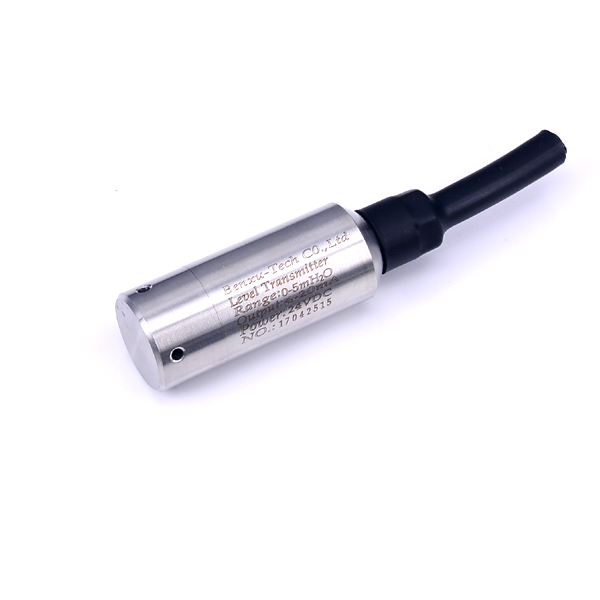

BX-LS610 Level Transmitter

一，Feature：

1, Prevent from the surge voltage, over-voltage, over-current and the protection of reversed polarity;

2, Do the test to make sure the ability of overload resistance and shock resistance,precisely ensure the

overload capacity;

3, Implement the electromagnetic interference resistance to avoid the problem taken place under the

condition of complicated electromagnetism environment;

4, All sensitive chips are from the imported OEM parts,in order to keep the long-term stability.

二，Technical Parameters：

Measurement Range：0～0.5m～200mH2O

Measurement Medium：Liquid which is compatible with 316L stainless steel(can choose the anti-corrosive for special use)

Accuracy：±0.2%FS;±0.5%FS

Overload Capacity：Two times full-scale pressure

Power Supply：9-32VDC

Output Signal：4-20mA/0-5VDC etc

Using Temperature：-20℃—120℃

Compensation Temperature Range：-10℃—80℃

ZTC：(typical):±0.02%FS/℃

STC：(typical):±0.02%FS/℃

Long-term Stability：(typical):±0.1%FS/year

Protection Class：Outer shell-IP68

Shell Material：304L/316L stainless steel

Explosion-proof Type：Exia II CT6
