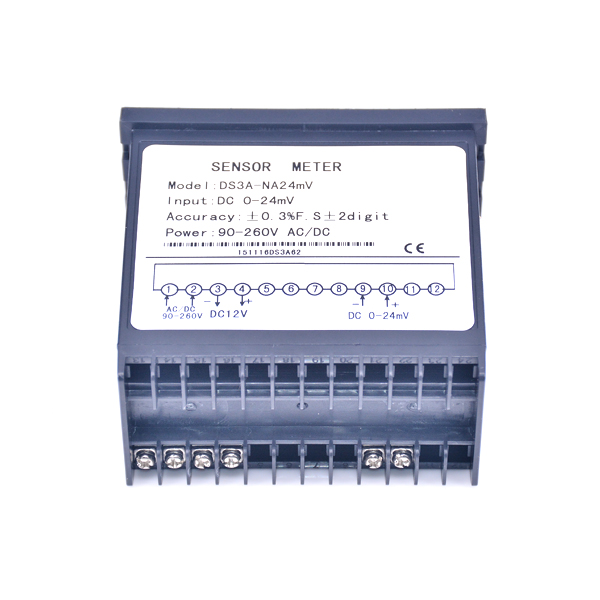

BX-DS3A Weighing Sensor Meter

一，Technical Parameters:

Input: DC 0-24mV

Accuracy: +/-0.3%F.S +/-2digit

Power: 90-260V AC or 18-30V DC

Consumption: ≤ 5VA

Sampling rate: ≤8 times/second

Will be suitable for all of our Load Cell Sensor

二，Warning:

Please do not turn on the power supply until all of the wiring is completed. Otherwise electrical shock,fire or malfunction may result.Do not wire when the power is on. Do not connect the unused terminals. Do not turn on the power supply when cleaning this instrument. Do not disassemble,repair or modify the instrument. This may cause electrical shock, fire or malfunction.Use this instrument in the scope of its specifications. Otherwise fire or malfunction may result.

三，Applications:

The instrument can measure any range of Current or Voltage signal input. The user can select data remained or top value remained. The instrument can be use with 2 wire transmitter, pressure sensor,4 wire weight

sensor and so on. For non-linear input, the instrument can process for 20 stages.As well the instrument can

be with RS485 communication. The input, output and the power supply is isolated.
