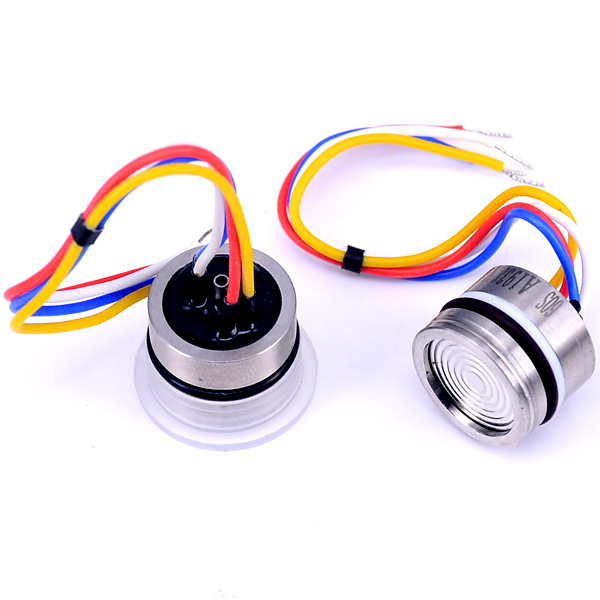

BX-PSC19 piezoresistive silicon pressure sensor

PSC19 is the core component for the manufacture of pressure sensors and pressure transmitters.As high-performance pressure sensitive component,PSC19 can be easily amplified and assembled into the pressure transmitters with standard signal output.

PSC19 packages diffused silicon pressure sensitive die to 316Lstainless steel housing.External pressure is transmitted to pressure sensitive die through stainless steel diaphragm and internally sealed silicon oil.Pressure sensitive die does not directly contact with measured medium,forming all solid structure of pressure measurement.So the product can be applied to a variety of occasions,including harsh corrosive medium environment.

PSC19 uses O-ring for pressure seal,which is easy to install.Our company can also undertake special customization based on the needs of users,such as pressure sensors of all welded structure,wide temperature compensation,high reliability,anti-shock and anti-vibration sensors,especially for national defense weapons and equipment.

Features:

With constant current and constant voltage excitation options.

Imported highly reliable pressure die.

Wide temperature compensation.

Normalized output available.

Compensation board filled with glue for protection against moisture.

Ø19mm standard OEM.

All 316L material.

High performance,all solid,high reliability.

Application:

Process control systems

Pressure calibration instruments

Refrigeration equipment and HVAC control

Hydraulic systems and valves

Level measurement

Biomedical instruments

Ships and navigation

Aircraft and avionics systems

Weaponry
